Features and Specs

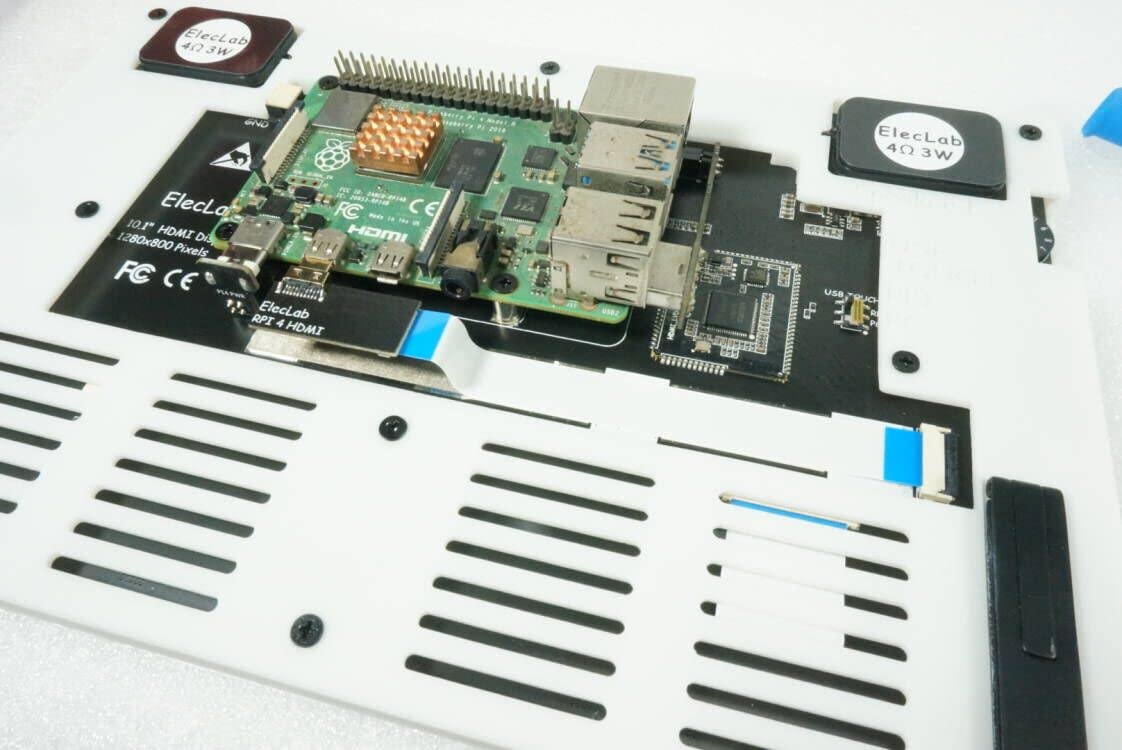

The 10.1" LCD display is an IPS LCD display which connects to the RPI through the HDMI FPC cable.

The Physical resolution of LCD display is 1280*800.

It has 5 point capacitive touchscreen and connects to RPI1,2,3 via PI3 USB board or to RPI4 via PI4 USB board..

It has 2x3W speakers.

It is compatible with RPI 1 model A+ B+/ PI 2 model B/PI 3 model A+ B B+/PI 4 model B nd 2B.

It is powered by the USB TypeC socket and the RPI is powered by the display. Connect RPI1,2,3 with micro usb board, and connect RPI4 with USB Typec board..

Package Includes

1 x 10.1 inch hdmi display with 3D print case and 2 brackets

1 x TypeC USB cable

4 x pcb(micro usb power board, typeC usb power board, usb board for RPI3, usb board for RPI4)

1 x XH2.54 2Pin cable

1 x touch pen

4 x M2.5x5 screw

1 x HDMI FPC board and FPC cable for RPI1,2,3

1 x Micro HDMI FPC board and FPC cable for RPI4

1 x straight screwdriver

2 x 3d print stand

1 x user manual

How to set when Raspbian is not showing

When use RPI4, make sure that VC4-KMS-V3D is prohibited in config.txt

#dtoverlay = VC4-KMS-V3D

Connect to Raspberry pi, Modify /boot/config.txt

hdmi_force_hotplug=1

hdmi_ignore_edid=0xa5000080

hdmi_group=2

hdmi_mode=87

hdmi_cvt 1280 800 60 3 0 0 0

hdmi_drive=2

Connect to PC

If it cannot be displayed, please select this refresh rate as 59.940Hz

Brand	ElecLab
Product Dimensions	1.4 x 23.11 x 15.24 cm; 862 g
Item model number	EL101HDMI1280800
Manufacturer	ElecLab
Series	EL101HDMI1280800
Colour	black
Standing screen display size	10.1 Inches
Screen Resolution	1280x800
Resolution	1280 x 800 Pixels
Number of USB 3.0 Ports	4
Number of HDMI Ports	2
Voltage	5 Volts
Tuner Technology	Digital
Are Batteries Included	No
Item Weight	862 g
Guaranteed software updates until	unknown

ElecLab 10.1 Inch 1280x800 Touchscreen Monitor HDMI Capacitive LCD Display Speaker for RPI 4B 3B+ 3B 3A+ 2B B+
