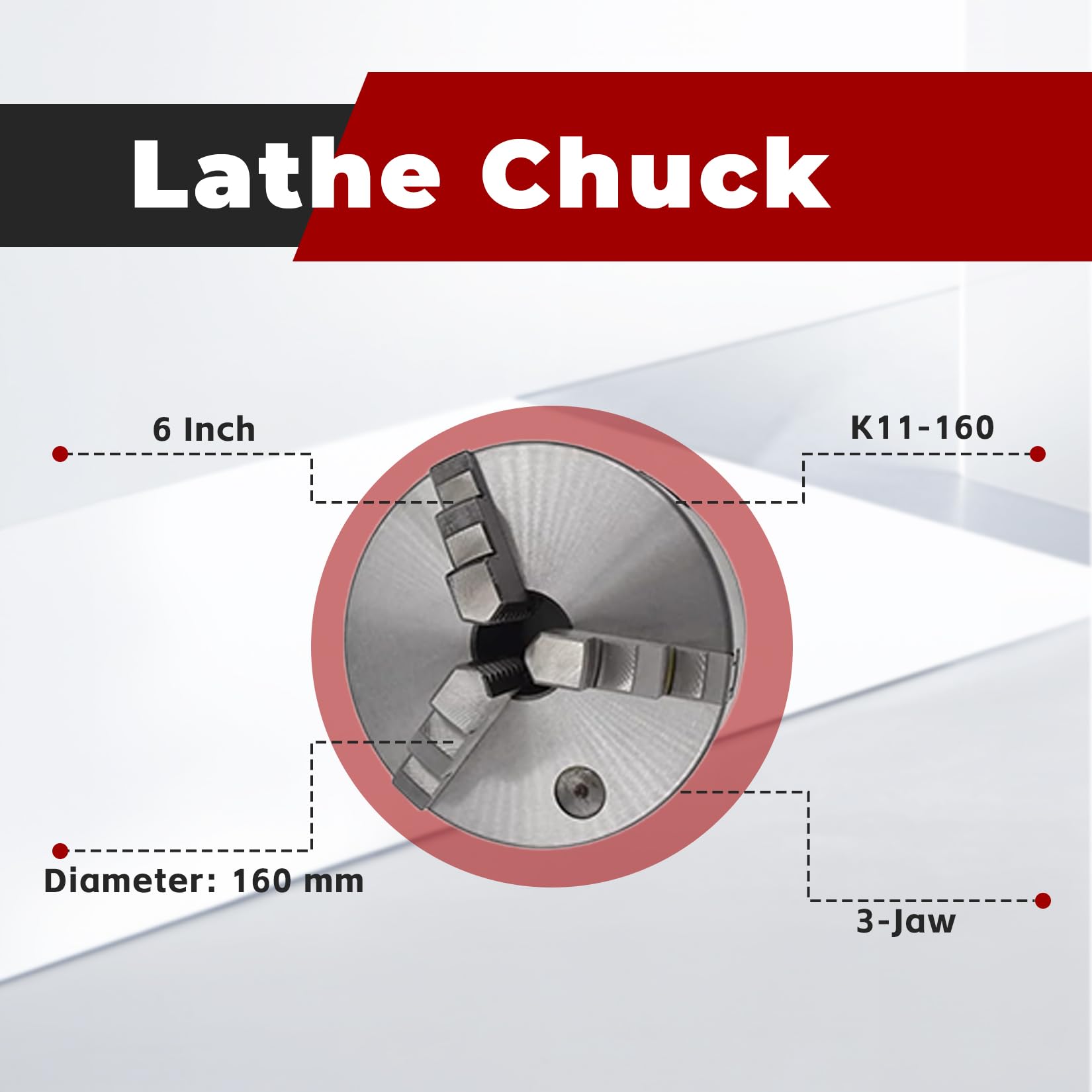

findmall 6 Inch Lathe Chuck K11-160 3-Jaw Self-Centering 160mm CNC Lathe Chuck

Description

Description?Size: 160 mm (6.3")Outside Diameter: 160 mm (6.3")Bolt Circle Diameter: 142 mm (5.59")Center Thru Hole Diameter: 45 mm (1.77")Chuck Body Thickness: 65 mm (2.56")Internal Jaw Clamping Range (A-A1): 3-55 mm (0.12"-2.17")Internal Jaw Jamming Range (B-B1): 50-160 mm (1.97"-6.3")External Jaw Clamping Range (C-C1): 55-145 mm (2.17"-5.7")Mounting Thread: 3-M8Accuracy: 0.002" Features?MAIN PARAMETER-3 Jaw self-centering design lathe chuck. Diameter: 160 mm (6.3")QUALITY MATERIAL-Semi-steel body. Cast iron chuck body. All guideways and bearing surfaces are precisely machined2 SETS OF JAWS-Internal and external jaw sets included. Internal clamping range: 3-55 mm (0.12"-2.17"). Jamming range: 50-160 mm (1.97"-6.3"). External clamping range: 55-145 mm (2.17"-5.7")DURABLE IN USE-Both side of jaw teeth and guides are ground and hardened to HRC 58-62APPLICABLE RANGE-The chuck is suitable for machine tools and accessories for general lathes, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories, etc... Package Included:1 X 160 mm/6 Inch Lathe Chuck Body3 X Internal Jaws3 X External Jaws3 X Mounting Bolts1 X Safety Chuck Key
