🔧 Elevate Your Projects with Precision!

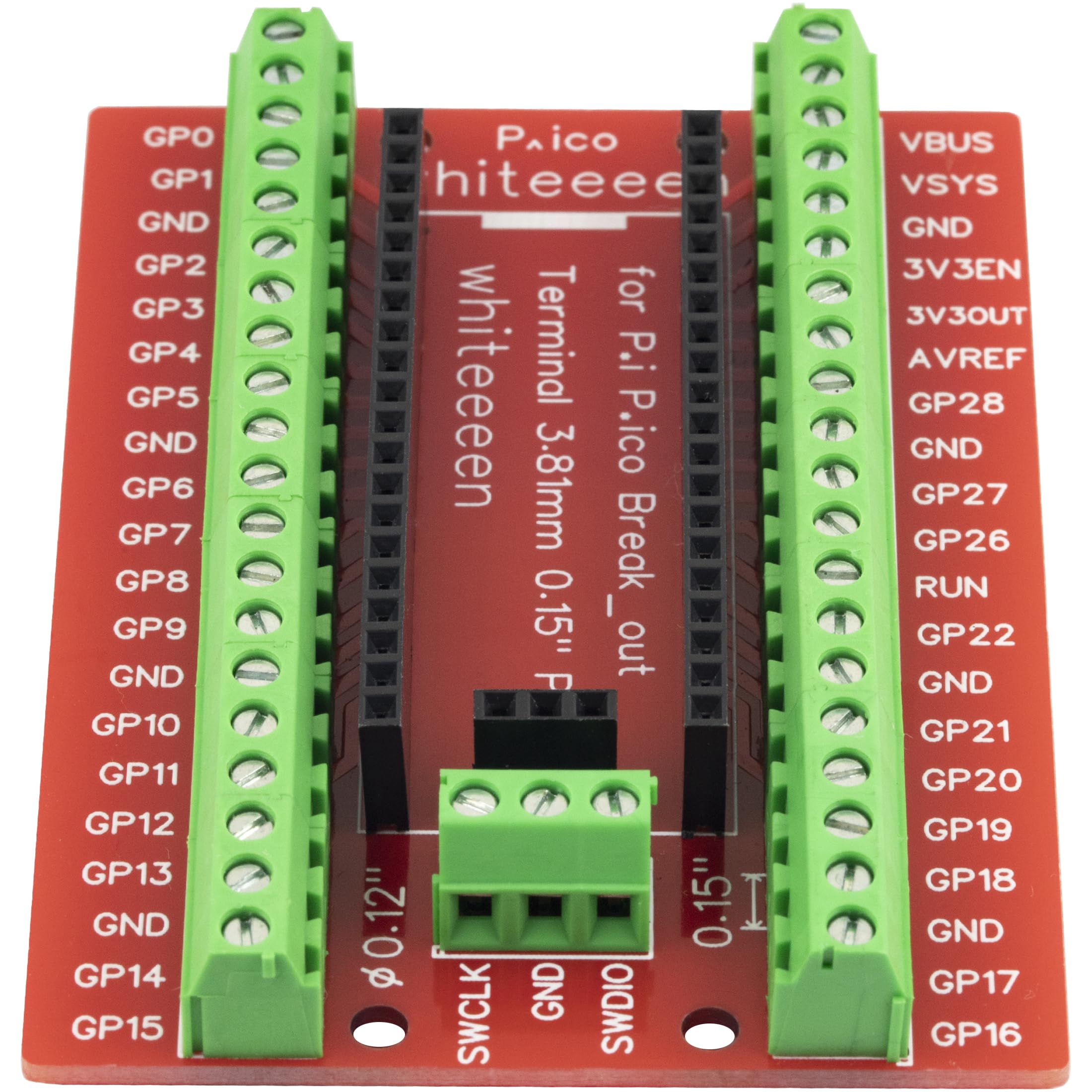

The for PI PICO Terminal Breakout Board is a meticulously designed 43-pin board compatible with the Raspberry Pi Pico. With a 3.81mm pitch and pre-soldered connections, it simplifies your wiring tasks while ensuring clarity with labeled terminal blocks. Weighing only 1.44 ounces, it's the perfect companion for your next tech project.
| Brand | whiteeeen |
| Item model number | 2D-12 |
| Item Weight | 1.44 ounces |
| Product Dimensions | 4.72 x 4.33 x 0.59 inches |
| Item Dimensions LxWxH | 4.72 x 4.33 x 0.59 inches |
| Manufacturer | whiteeeen |
| Date First Available | May 11, 2021 |
R**3
Makes ESP Boards Easier
I got this to make connecting several door sensors to a single ESP board, this makes it super easy and no need to break out the soldering iron.
J**A
Awesome breakout board for the ESP32-DevKitC-32E Development Board
This board is perfect! I used it for the ESP32-DevKitC-32E Development Board from Espressif and it fit perfectly. I was a little worried too because it seems that there are some other breakout boards that are for narrower development boards. If you have a total of 38 pins and each row of pins is about 1 inch apart, then this is the board for you! I'm using it to run WLED program to control LED light strips. It's great! I may buy more!
J**N
First impression, I like it
My first impression is that this seems to be a very sturdy build. It is a bit larger than the other version I've tried, but for this use case I like it. The board is thick and sturdy and the terminals feel solid. If size isn't really an issue I would pick these over the smaller ones that are the same size as the Pico just for ease of use and sturdiness....plus they came already assembled.Update: Although I still like these, they do need to move the mount holes slightly. The holes fit an M3 bolt but there isn't room for the head or a nut on 2 of the holes.
E**O
Funcional
Me iso mas facil mi trabajo
E**S
As shown
This was the perfect board for me to use in my project.
E**L
Super Breakout Board DIN Mounting Can Be Tricky!
The board itself is awesome and easy to use, just have to pop the ESP-32 Dev board in and presto now you have screw terminals for all the pins. However IF you need to mount it to say something like a DIN rail.. well it might require modification. Mine did and it was kinda of a bummer but nothing that can't be fixed!I tried to print out some mounting brackets and nothing would fit quite right. It was ever so slightly crooked and was causing some issues with routing my wires. I'm using a very small enclosure and it doesn't have a lot of room for error.I eventually printed out some brackets and got the drill out to make the holes match the boards pre-drilled mounting holes and it now sits level. This is the only issue I've had with my board, I hope they fix this in the next round!
F**C
One step above!
Micro with headers plugs in, so it can be easily replaced. More permanent than breadboards, with no soldering needed.
