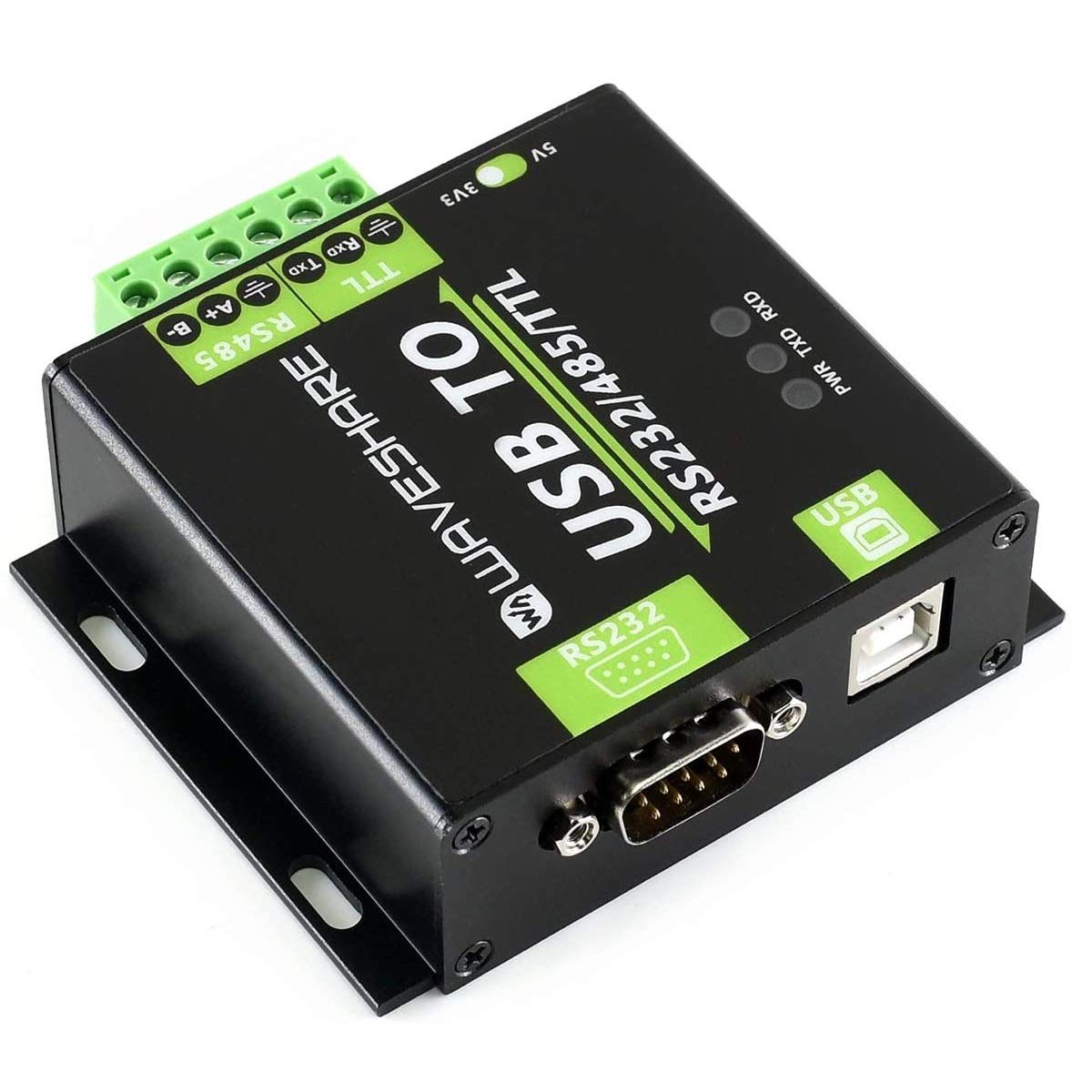

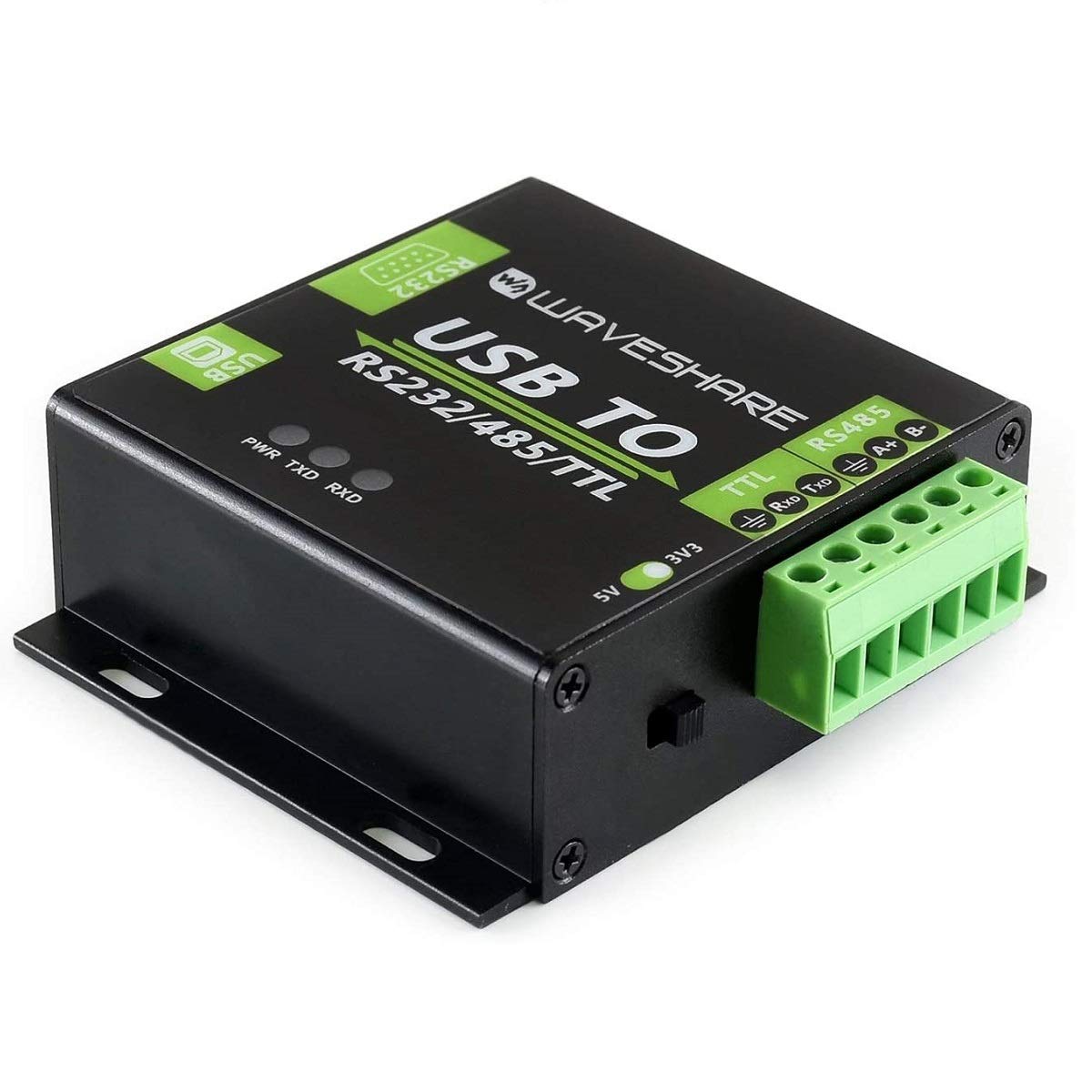

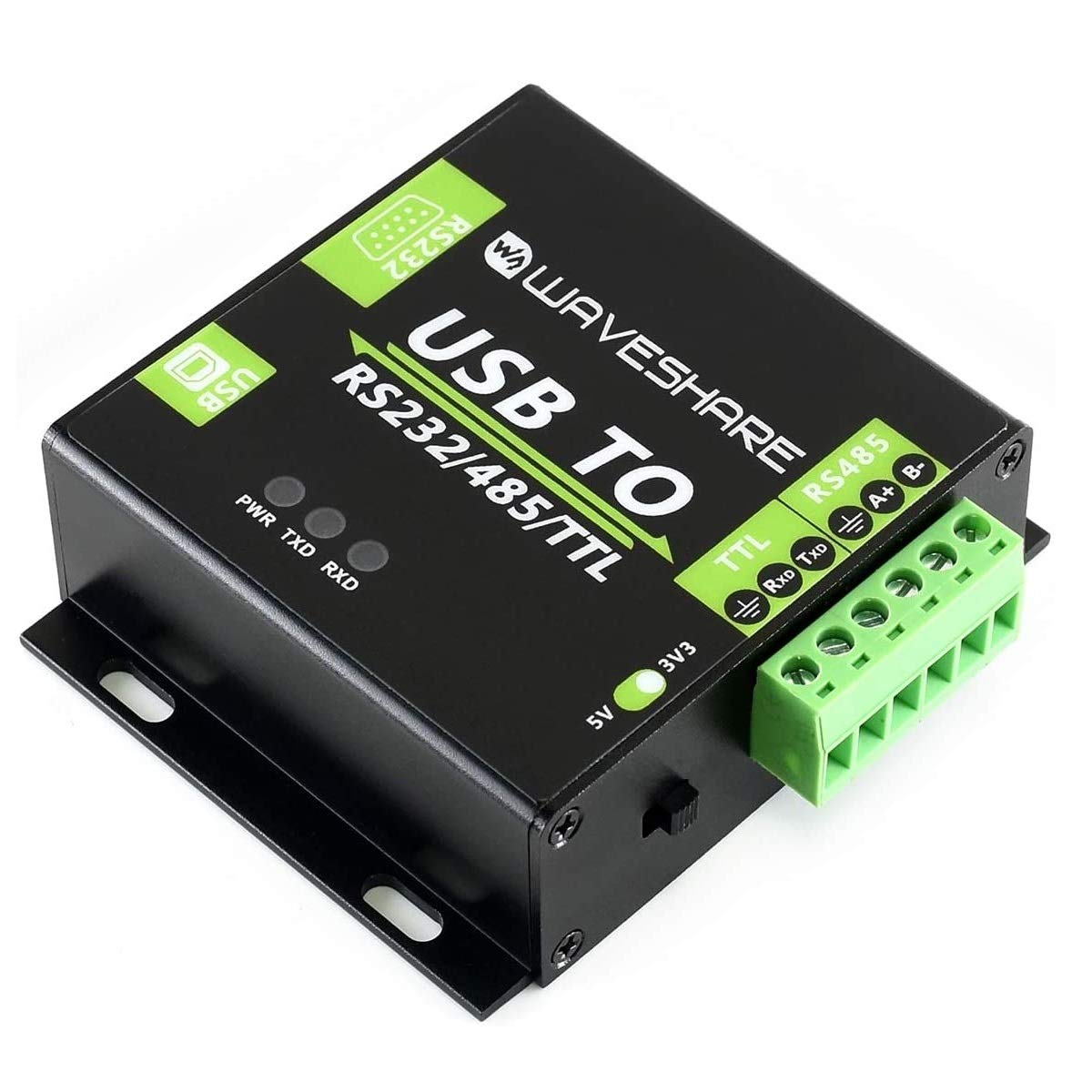

Overview

This is an industrial USB to RS232/485/TTL isolated converter with original FT232RL inside. It features embedded protection circuits such as power isolation,
ADI magnetical isolation, and TVS diode, etc. What's more, the USB TO RS232/485/TTL comes with an aluminium alloy enclosure, make it solid and durable to work.

The USB TO RS232/485/TTL is very easy to use, fully automatic transceiving without delay. Due to its fast communication, stability, reliability, and safety, it is
an ideal choice for industrial control equipments and/or applications with high communication requirement.

Features

USB TO RS232, USB TO RS485, USB TO TTL (UART)

Adopt original FT232RL, fast communicating, stable and reliable, better compatibility

Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic

Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance

Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other

Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch

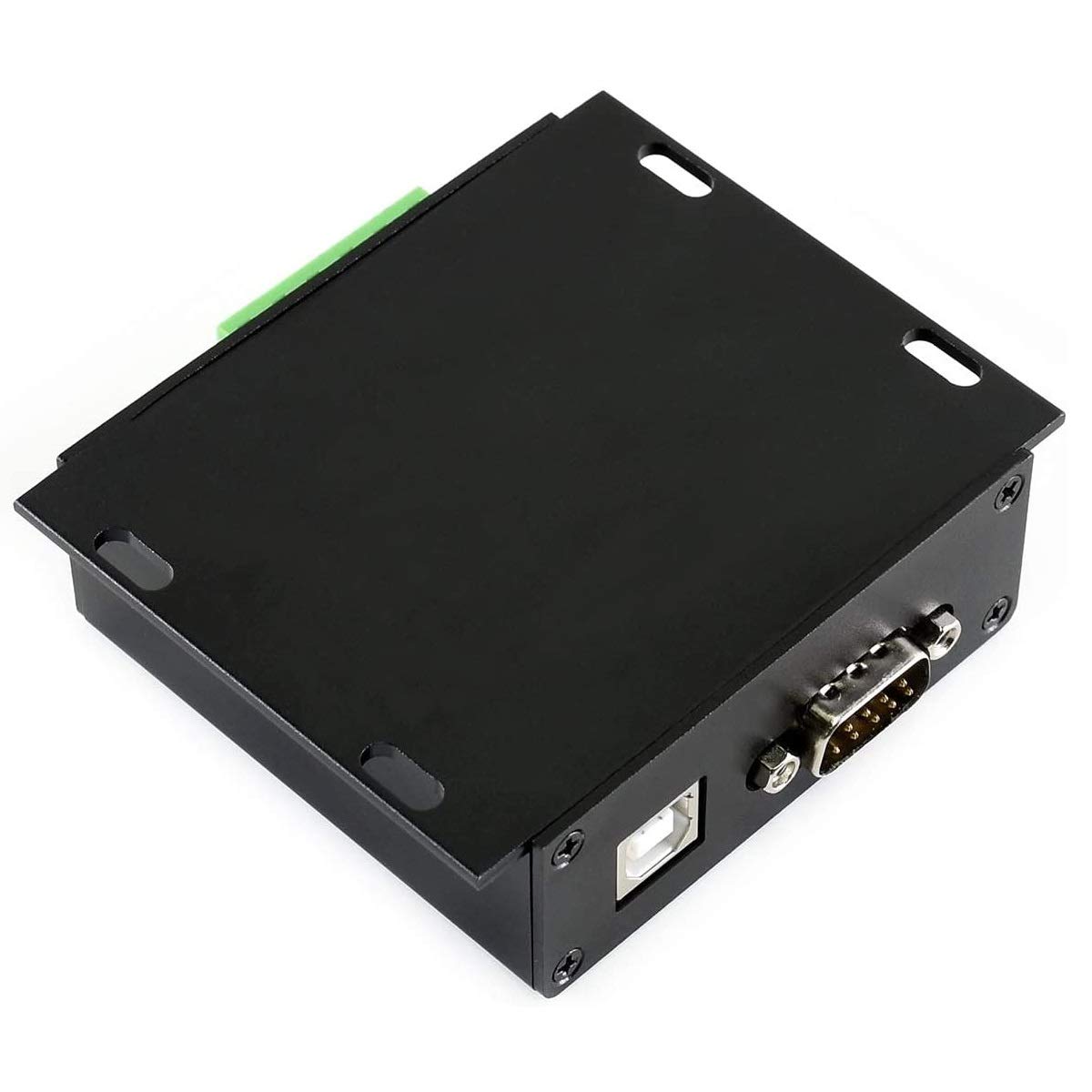

Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable

3 LEDs for indicating the power and transceiver status

High quality USB-B and RS232 connectors, smoothly plug/pull

Brand	waveshare
Item model number	USB To RS232/485/TTL Converter
Operating System	Windows 10 / 8.1 / 8 / 7 / XP
Item Weight	6.7 ounces
Package Dimensions	6.25 x 4.25 x 1.75 inches
Color	USB TO RS232/485/TTL
Processor Brand	VIA
Manufacturer	Waveshare
ASIN	B07NZ3M8K5
Date First Available	February 22, 2019

waveshare USB to RS232 / RS485 / TTL (UART) Industrial Isolated Converter with Original FT232RL Inside Aluminium Alloy Enclosure Power/ADI Magnetical Isolation,TVS Diode

Details

Description

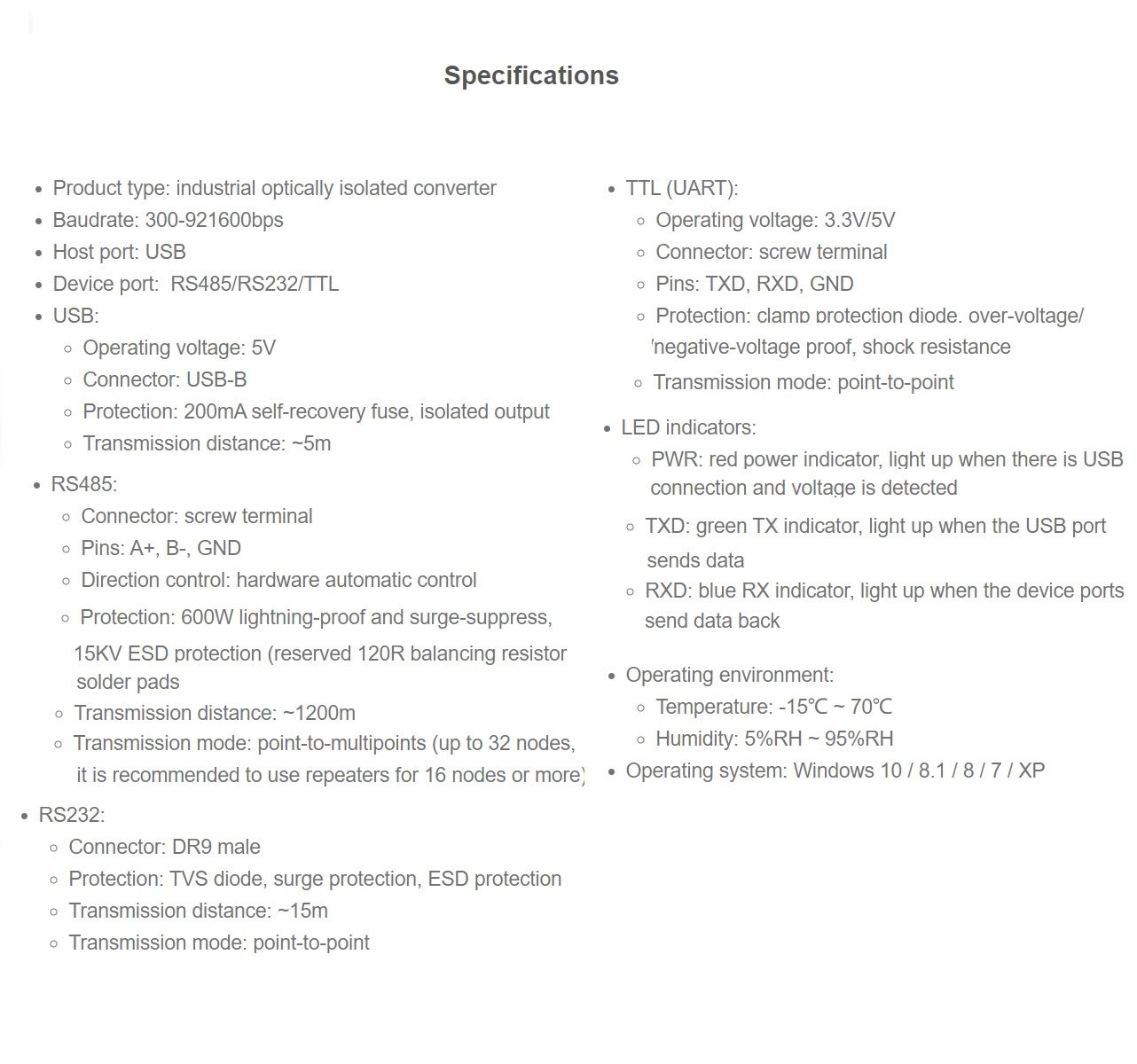

Specifications
