🚀 Elevate Your 3D Printing Game!

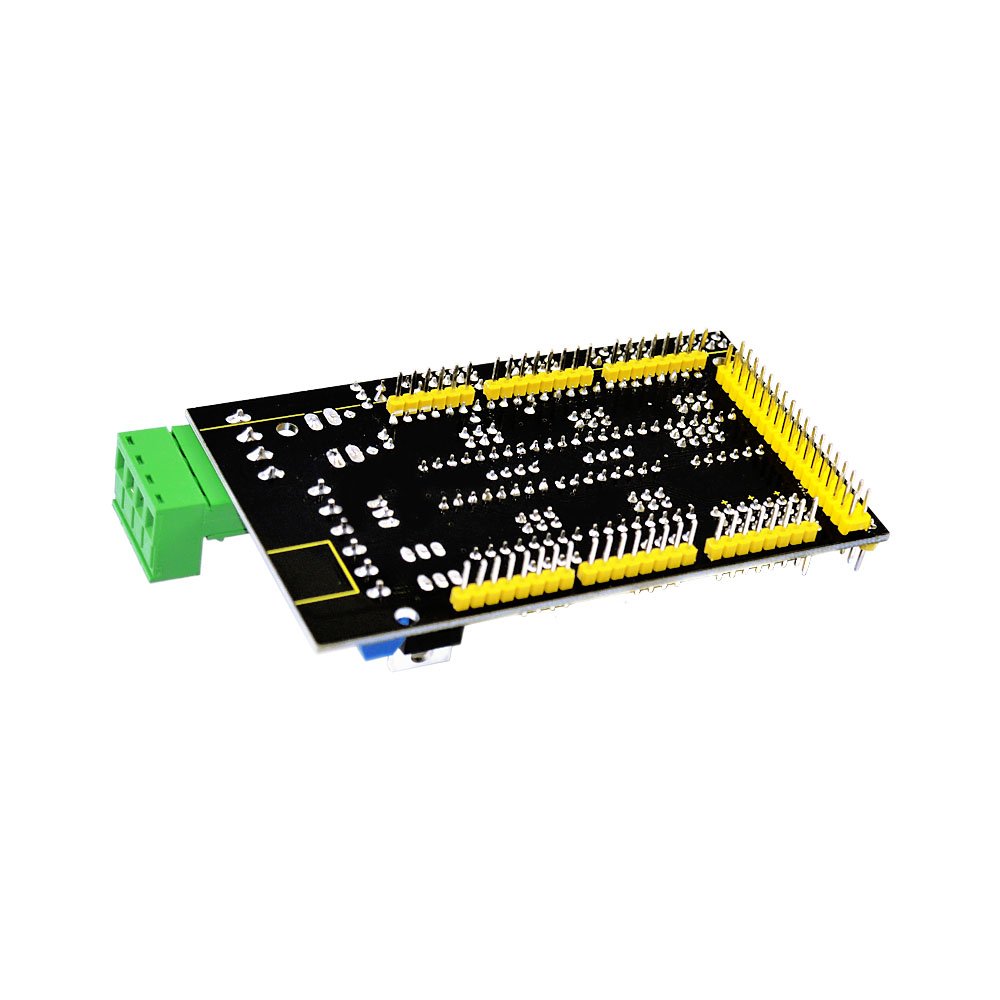

The KEYESTUDIO 3D Printer Controller Board RAMPS 1.4 is a versatile and lightweight driving shield designed for 3D printers. It features 5 slots for stepper motor drive modules, compatible with popular models like A4988 and DEV8825, and allows for precise control through adjustable jumper caps. With a compact design and 12V power compatibility, it's the perfect addition to any Arduino Mega and RAMPS 1.4 project.
| Brand | KEYESTUDIO |
| Item model number | 8541631376 |
| Item Weight | 3.87 ounces |
| Package Dimensions | 5.43 x 4.06 x 2.2 inches |
| Color | Multicolor |
| Voltage | 12 Volts |
| Manufacturer | keyes |
| ASIN | B01E5K98C6 |
| Is Discontinued By Manufacturer | No |
| Date First Available | April 12, 2016 |
S**M
I bought 2 . It's absolutely wonderful
I bought 2 . It's absolutely wonderful
N**B
Great quality RAMPS 1.4 Controller
I have gone through at least two of the generic blue versions of this unit, and I can say without a doubt that the extra couple of dollars is certainly worth it to upgrade to the Keyestudio version. This unit uses much larger thermal fuses, and mosfets with a higher gauge of wire. The result is a much better quality Ramps 1.4 controller! I have far less downtime, and far less heatbed failures.
A**M
No complaints, runnin' on 24 volts
This ramps is awesome because it comes with fuses that are already rated for 24v. (Weird that they don't advertise this amazing feature...) No need to desolder them or to mess with automotive fuses.Mine works great. (I am using a Taurino Power for the arduino, so I didn't need to mess with removing the diode and wiring separate power supplies)
S**T
Well made for a ramps board.
Looks well made for a ramps board.
J**N
Solid
I've purchased five or six Ramps 1.4 boards over the years. This is one of the better ones. Came pre-loaded with the jumpers for micro-stepping, no bent pins or weak solder joints, just plug and play. If you need to replace a ramps board or just want to swap your printer over to something cheap and functional, this is a good one (and I've had bad ones..). Pairs nicely with a cheap mega clone and some cheapo a4988 stepper drivers. Add a 2004 LCD module and you are living the dream (seriously though, you don't need crazy gear to get great results).
S**O
The vendor should share more details about the PINOUT on either PCB board or website.
The vendor should share more details about the PINOUT on either PCB board or website.Can not find any details about how to plug in the A4988, which side is the right direction.On their website, it was said"A. Mount 4988 correctly, don’t mount reversely, or they will be burnt, as shown below:"But NOWHERE to indicate that what is the correct mounting way.
M**Y
For my MPCNC
Used for my MPCNC with the same brand under board. installed without issues and works great
K**E
Worked great for three months
Worked great for about three months. Bed MOSFET seems to have died.
S**X
5 stars on all
High quality Ramp board
J**A
はんだ付け無しでAstroEQ赤道儀コントローラが出来ました
モータードライバーモジュールとステッパーモーターを繋いで、Arduino MEGA 2560 にかぶせて、AstroEQのファームを書き込んで、あっという間に赤道儀コントローラーが出来てしまいました。ギア比やモーター回転角などのパラメータ設定は、AstroEQ Configuration Utility というアプリで設定して書き込みました。筐体に入れるためにコネクタを半田付けしたのは仕方ありません。CP高いので星5つです。
A**R
Excellent and Quality Ramps shield
Bought a pair of these to replace some generic “red” RAMPS boards, the quality of these is simply superb.
P**H
問題なく作動中
黒い基盤にイエローと明暗がハッキリしていてモジュールを差し込みやすかったです。赤い基盤より安定しているのかな？交換部品に最適
J**E
All ok
Fast delivery. Works well.
