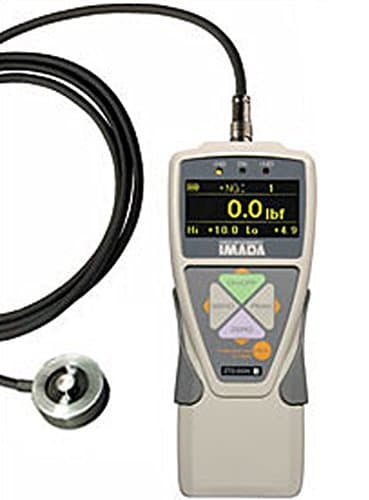

The ZTA-LM-1100 ELD Advanced Digital Force Gauge Complete Kit - 1100 lbf Capacity is ideal for confined spaces or difficult to reach measurements. All standard LM sensors are less than 1.5" in both diameter and height and measure compression only. A standard six foot cable connects the gauge to the sensor. The Z2S-LM unit offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.Store up to 1,000 values in memory, which can be displayed or transmitted using the RS-232C port. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons.
