Question 1

Can the cables be extended using a VGA extension cables?

Accepted Answer

I don't know how many pins in your extension are connected and are end-to-end, but if all the pins are there and all are wired straight through, I would guess so, as long as the extensions are plugged into the KVM box FIRST and their special VGA/USB combo cables are plugged into the extensions.  You'd be basically extending their socket, then plugging the adapter cables into the PCs.

Question 2

The kvm doesn't need a usb input from the pc? i only see vga inputs on the box?

Accepted Answer

The cables are not symmetric.  The end with only the VGA connector plugs into the KVM switch and the end with both VGA and USB plugs into the PC.  The end with only the VGA connector that plugs into the KVM switch uses extra pins on the VGA connector to carry the USB signal.  This is a proprietary cable and can NOT be replaced with a standard symmetric KVM cable (ie, same connectors at both ends).
Steve Clarke's answer (on another question) claiming that standard cables can be used is WRONG -- sorry.
Seller: Please let us know if it is possible to buy replacement cables and how much they cost, or, alternatively, please provide a pinout diagram for the KVM side of these cables.  Thanks.

Question 3

Does it work if I have one computer running on Window 11 and one computer on window 10?

Accepted Answer

Yes, it works for me. I use it to connect to a server, windows 10 & 11 to one at a time to the same screen computer. It allows me to swap to the computer I want to work with. It will swap a USB port also so a wireless keyboard and mouse will work.  It does not swap the speakers outputs or sound card connections. You may be able to use the USB port to do sound. My switch has 3 USB ports on it.

Question 4

Does this carry audio signal??? Thx!

Accepted Answer

All it does makes it easy to switch three USB connection and a one VGA monitor to different computers.  VGA does not carry sound.  It may be possible to use one of the USB ports to transfer sound.

There is no 3.5 plug to transfer sound inputs or outputs.

I looked into it and you may be able to use a USB bluetooth out put device to plug into this switch and it will swap to every computer as the monitor  swaps . My  blue tooth mouse switches with the  monitor.

ASIN	B092Q2DVC2
Actuator Type	Push Button
Best Sellers Rank	#54,037 in Computers ( See Top 100 in Computers ) #133 in KVM Switches
Brand Name	DGODRT
Circuit Type	4-way
Color	Black
Compatible Devices	Computers with USB Port
Connectivity Protocol	USB
Connector Type	USB
Contact Material	Copper
Contact Type	Normally Open
Control Method	Push Button
Control Type	Full control over connected computers
Controller Type	Push Button
Country Of Origin	China
Current Rating	1 Amps
Customer Reviews	4.4 4.4 out of 5 stars (742)
Included Components	VGA KVM switch1, 2 In 1 KVM USB Cable4, Wired Switch Button1, User Manual1
International Protection Rating	IP54
Item Dimensions	7.8 x 17.8 x 18.8 centimeters
Item Weight	0.1 Kilograms
Manufacturer	MICROWARE
Material Type	Acrylonitrile Butadiene Styrene
Model	KS204V
Mounting Type	Plug-In Mount
Number of Items	1
Number of Positions	4
Operating Voltage	5 Volts (DC)
Operation Mode	ON-ON
Part Number	KS204V
Specification Met	CE
Switch Type	MOSFET
Terminal	Insert
UPC	751031441835
Unit Count	1 Count
Upper Temperature Rating	70 Degrees Celsius
Wattage	4.94 watts

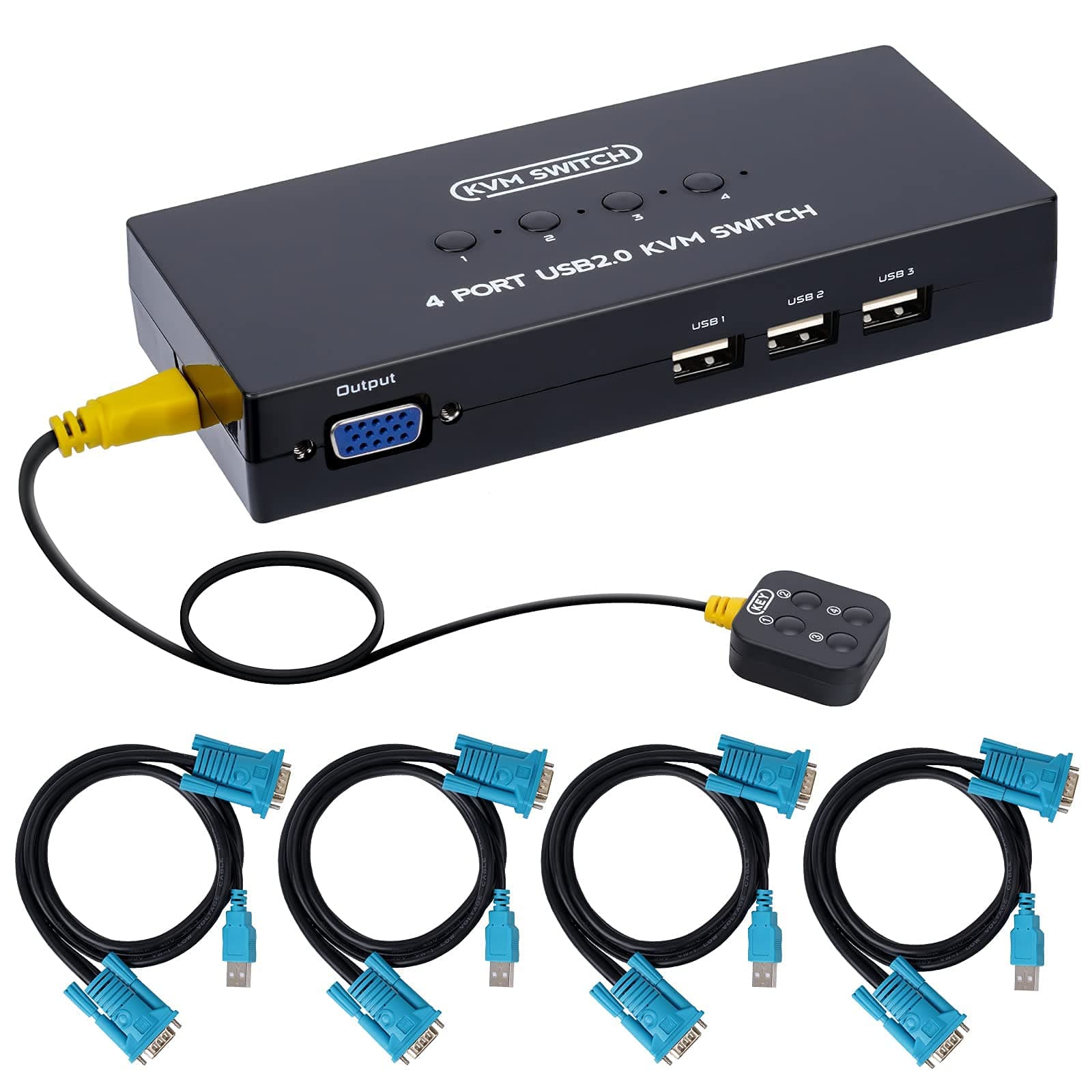

DGODRT VGA KVM Switch 4 Port, USB VGA KVM Switcher for 4 Computers Share 1 Monitor 3 USB Devices Keyboard Mouse Scanner Printer, Including 4 KVM Cables & Desktop Control
