Question 1

If I have only two wires behind my switch, one is load and the other is neutral? Should I install this between two wires?

Accepted Answer

Between neutral and hot on the load (lamp) side. Per the instructions.
If you have one wire in and one out, it is likely the switch just switches the hot and the neutral is with the other neutrals (usually white wires) in the switch box.

Question 2

How do you install this at the switch? Does it go between the white neutral on the switch and the neutral in the wall?

Accepted Answer

Between the neutral (while) and the hot (black) and it does not matter if installed behind the switch to be honest one of the lights if there is more than one being switched by the same switch. Note, however, that if also using a Lutron electronic dimmer such as Maestro or one of the others, those types are very large so as small as this unit is, there is probably not enough room for it inside the same box so you will have to install it behind the light.

Question 3

Do I need one per circuit or one per recessed can light? Does it matter where in the circuit I place it (switch box or fixture)?

Accepted Answer

As long as it’s on the load side and the neutral, it doesn’t matter if it’s installed in the switch j-box or at the fixture itself.

Question 4

When they are off 1 of the 4 will randomly flicker for a second in a 1-2 hour period. Will this work to fix it?

Accepted Answer

Yes

Operation Mode	[POSSIBLE] automatic
Current Rating	1 Amps
Operating Voltage	120 Volts
Contact Type	Normally Open
Connector Type	Awr
Brand	Lutron
Terminal	Physical
Item dimensions L x W x H	1 x 1 x 1 inches
Circuit Type	2-way
Actuator Type	Motorized
Contact Material	Metal
International Protection Rating	IP00
Number of Positions	2
Upper Temperature Rating	1 Degrees Celsius
Controller Type	Ring
Control Method	Remote
Connectivity Protocol	X-10
Color	Black
Wattage	1.2E+2
Unit Count	1.0 Count
Number of Items	1
Manufacturer	Lutron
Part Number	FBA_LUT-MLC
Item Weight	0.64 ounces
Product Dimensions	1 x 1 x 1 inches
Item model number	LUT-MLC
Is Discontinued By Manufacturer	No
Item Package Quantity	1
Batteries Included?	No
Batteries Required?	No

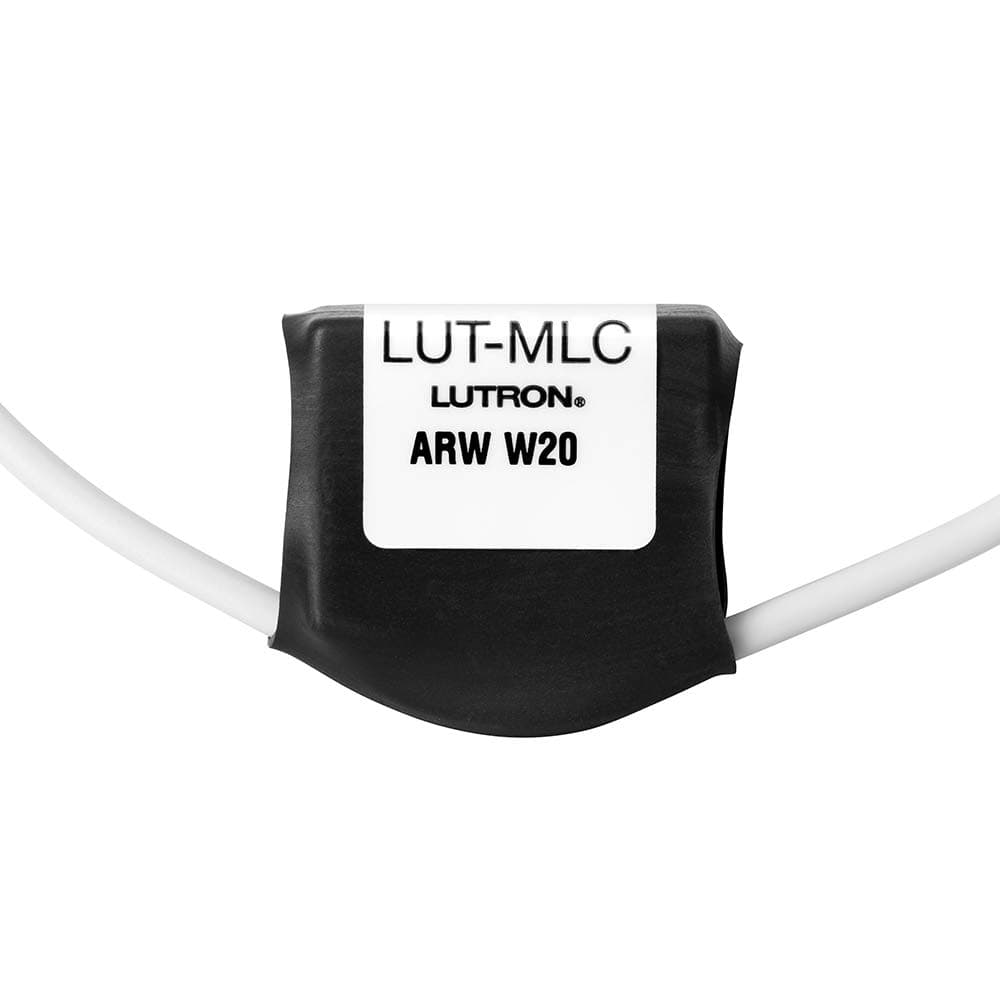

- Lutron LUT-MLC
