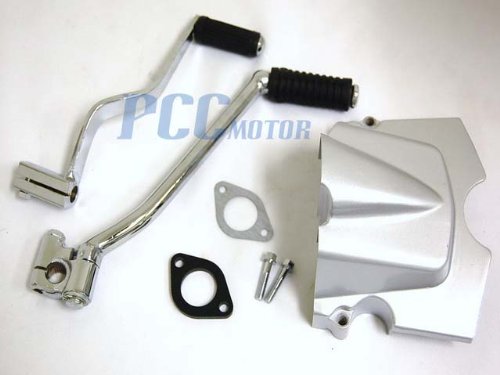

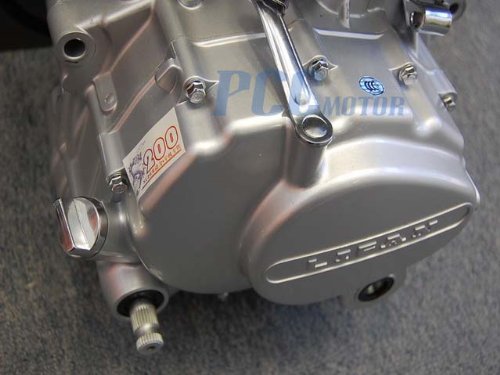

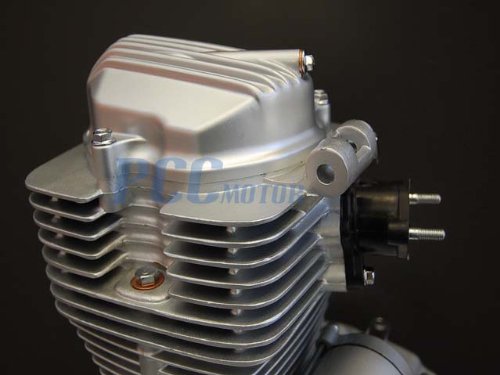

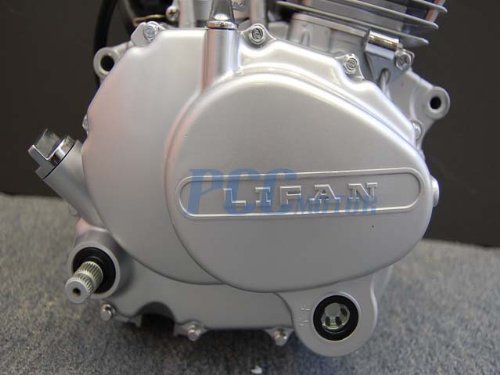

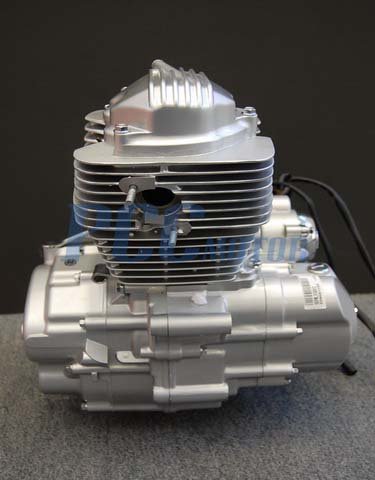

Brand new 200cc LIFAN High Performance Engine, 4 stroke, 5 speed manual, air-cooled, electric start/kick start, single-cylinder, CDI ignition. Ready to bolt on. This package only comes with Lifan 200cc engine, kick start and shifter. SPECS: Type: 1-cylinder, 4-stroke, OHV air-cooled by forced Bore x Stroke: 63.5mm x 62.2mm Displacement: 197.0ml Type: single cylinder, 4-stroke, air-cooled by forced Bore x Stroke: 63.5mm x 62.2mm Displacement: 197.0ml Compression ratio: 9.0 : 1 Max. HP: 16.0 HP @ 8,500 rpm 11.0708 ft lbs @ 7,000 rpm Idle: 1,500 RPM Oil capacity: 8L (10w-30) Start Mode: electric/kick Engine Measurements: 19.6" x 15.7" x 13.8" Weight: 69 pounds Clutch: Manual Gears: 5 speed Start Mode: electric/kick Engine Measurements: 19.6" x 15.7" x 13.8" Ratios: 2.769/1.882/1.400/1.130/0.960 Magneto: Permanent magnetic Voltage: 12 Volt Accessories Power: Lights and other accessories This Lifan engine will fit the following Honda bikes: * CB125 * CM200 * CRF150 * CRF230 * SL175 * TLR200 * TR200 * XL175 * XL185 * XL200 * XR185 * XR200 * SL100
K**N
Accessories Needed Before Operation of Lifan 200cc (Vertical Air Cooled)
Keep in mind that the motor will need a carburetor and a CDI (Capacitor Discharge Ignition). Carb is roughly $40.00 and the CDI is about $67.00. Oil Level sight-glass--no dipstick. Shipped with NO oil in the crank...be sure to fill with 10W-40 Non-"Energy Conserving," which is not good for wet clutch applications such as this Lifan Engine. Quantity: 1 Liter capacity (1 Quart 2 Ounces)Make sure that the bike is plumb and level when checking the sight glass for actual oil level. Change oil after 10 hrs or 90-100 miles of use.*Sometimes shipped with or without the gear shifter lever or kick-start lever*
